● 클린벤치 품질기준 SPS-KCLI2006-6235에 따른 한국건설생활환경시험연구원 검사품
검사성적서: CT16-03198, CT16-03199, CT16-03200, CT16-080364
(1) 청정도시험 (2) 절연저항시험 (3) 내전압시험
(4) 소비전력측정 (5) 조도시험 (6) 진동시험
(7) 소음시험

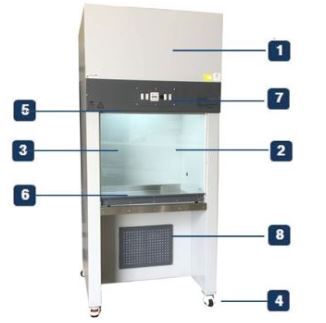

FILTER UNIT: HEPA FILTER(0.3um, DOP 99.997% ABOVE)
FRONT SASH: CLEAR SAFETY GLASS 5T, UP/DOWN SLIDING TYPE
RECEPTACLE: 200V 2GANG
CASTER WITH STOPPER
FL/UV LAMP (20/30/40W) : DOOR OPEN/CLOSE SENSOR UV OPERATION : CLOSED DOOR CONDITION
WORK TOP: STAINLESS STEEL(SUS304)
CONTROL PANEL: MAIN S/W, FAN S/W, FL S/W, UV S/W, HOUR METER CONTINUOUS AIR VOLUME CONTROL
AIR SUCTION(PRE-FILTER)
● PRODUCT SPECIFICATIONS
(1)TYPE: EXHAUST TYPE VERTICAL LAMINAR FLOW CABINET
CLEAN ROOM CLASS 100(HEPA FILTER) : 0.3um AND ABOVE
CLEAN ROOM CLASS 10(ULPA FILTER) : 0.1um AND ABOVE
FILTER FACE VELOCITY: 0.5m/s MAX.
(2)MATERIAL
EXTERIOR: STEEL WITH EOPXY POWDER COATING(LIGHT GRAY)
INTERIOR: STEEL WITH EOPXY POWDER COATING(LIGHT GRAY)
WORK TOP: STAINLESS STEEL (SUS304)
FRONT SASH: CLEAR SAFETY GLASS 5T
STEEL SASH FRAME WITH EPOXY POWDER COATING
(3)FILTER UNIT
AIR FILTER: HEPA FILTER(0.3um, DOP 99.97%)
(ALUMINUME FILTER FRAME)
* OPTION: ULPA FILTER(0.1um, DOP 99.9999%)
*HEPA FILTER FRAME WITH ALUMINUME IS TO BE USED TO CLEAN BENCH
FOR BIOLOGICAL EXPERIMENT.
(4)FUNCTION
FL LAMP 2EA
UV LAMP 1EA (FOR WORK SPACE) : OPERATION AT DOOR CLOSED
HOUR METER *OPTION: DEFFERENTIAL PRESSURE GAUGE
FLOW CONTROL VOLUME S/W
RECEPTACLE : 220V, 2 GANGS (WATER TIGHT RECEPTACLE)
(5)CONTROL
ANALOGE CONTROL
(6)NOISE LEVEL
70DB AND BELOW
(7)POWER
SINGLE PHASE, 220V, 60Hz, 300~500W
● 필터사양
[HI-PAC Pre-Filter] [0.3um(Class 100) HEPA Filter]
